Component Type (ETIM Class)
Switching relay
Switching relay
Electrical
Nominal current16 ANominal voltage AC250 VMax. rated operation voltage Ue AC440 VNumber of contacts as change-over contact1Drive, switching attitudeMono stableRated switching power at AC-14000 VARated switching power at AC-15, 230V750 VABreaking capacity at DC-1, 30V12 ABreaking capacity at DC-1, 110V0.5 AVoltage type for actuatingDCControl supply voltage Us at AC 50HZ240 VControl supply voltage Us at AC 60HZ240 VWith LED indicationYesType of electric connectionPlug-in connectionElectrical life at Un, In (service cycles)100000 cyclesDrive, polarizationPolarity freeType of switch contactSingle contactMaterial of contact insertThermoplasticOperating voltage192-264 V
Nominal current16 A
Nominal voltage AC250 V
Max. rated operation voltage Ue AC440 V
Number of contacts as change-over contact1
Drive, switching attitudeMono stable
Rated switching power at AC-14000 VA
Rated switching power at AC-15, 230V750 VA
Breaking capacity at DC-1, 30V12 A
Breaking capacity at DC-1, 110V0.5 A
Voltage type for actuatingDC
Control supply voltage Us at AC 50HZ240 V
Control supply voltage Us at AC 60HZ240 V
With LED indicationYes
Type of electric connectionPlug-in connection
Electrical life at Un, In (service cycles)100000 cycles
Drive, polarizationPolarity free
Type of switch contactSingle contact
Material of contact insertThermoplastic
Operating voltage192-264 V
Material contactSilver nickelWith mechanical indicatorYesWith latching test buttonYesSuitable for plug-in socket mountingYes
Material contactSilver nickel
With mechanical indicatorYes
With latching test buttonYes
Suitable for plug-in socket mountingYes
Mechanical
Mechanical life (service cycles)10000000 cyclesMax. shock acceleration20 gMax. shock duration4 msMax. vibration acceleration20 m/s²Max. vibration frequency, operational150 Hz
Mechanical life (service cycles)10000000 cycles
Max. shock acceleration20 g
Max. shock duration4 ms
Max. vibration acceleration20 m/s²
Max. vibration frequency, operational150 Hz
Dimensions
Width12.4 mmHeight29 mmDepth32.8 mm
Width12.4 mm
Height29 mm
Depth32.8 mm
Environment
Operating temperature-40-70 °C
Operating temperature-40-70 °C

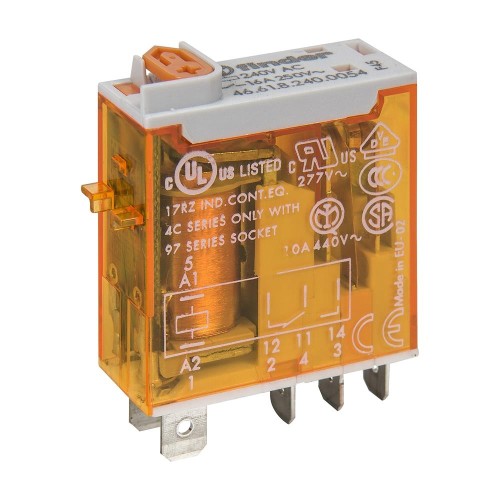

Finder 46 Series Miniature Relay 16A 1 CO 240V AC Coil with PB plus LED plus Mech. Indicator
The Finder General Purpose Panel Mount and Power Relays are a reliable and efficient switching solution for various applications and industries.
Options include coil voltages, output current ratings, contact configurations.
A modular design allows for surge suppressors, coil indication and timers.
Features manual override, push-to-test, slots for markers, jumpers and gold plated contacts.
| Stock | |
| Stock | Low |
Finder 46 Series Miniature Relay 16A 1 CO 240V AC Coil with PB plus LED plus Mech. Indicator
- Brand: NHP
- Product Code: NHP46610054240VAC
- Availability: In Stock
-
$27.32
- Ex GST: $24.84
