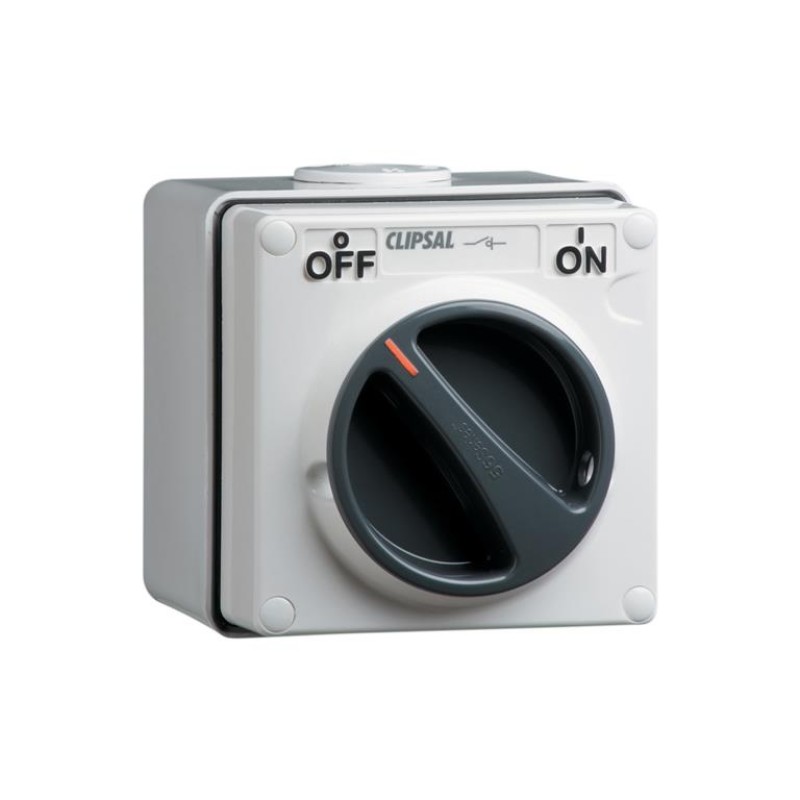

The 56 Series Surface Switches are available from 250 V, 10 A to 500 V, 63 A.

They incorporate a positive, rotary switch action.

The ‘ON’ and ‘OFF’ positions are clearly marked and there is provision for two padlocks.

Hole diameter is 8 mm. If locking is required in the ‘ON’ position, simply drill a hole where necessary.

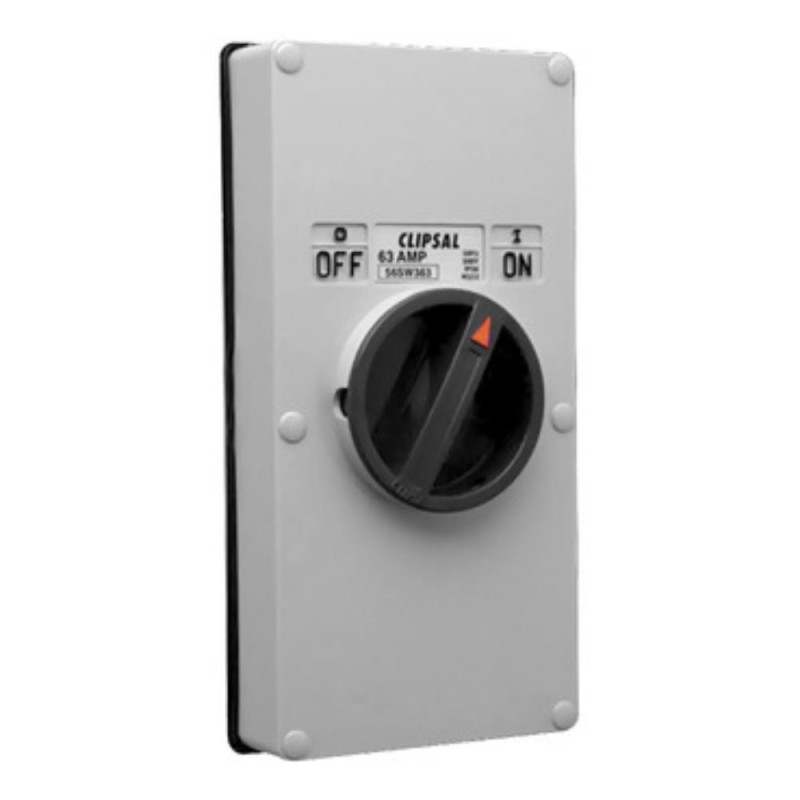

To provide easier wiring of our 56 Series Three Pole 63 A Switch, a deeper two gang enclosure and centrally mounted option (Cat. No. 56SW363/2), allows additional room for wiring associated with this application.

Earth and neutral connectors accommodating 3 x 6 mm2 cables are supplied with all products above 20 A.

All 63 A switches come with the facility to fit auxiliary micro switch 56SWAUX15.

Note:

-   AC utilisation categories to AS/NZS3947.3, Ithe- Conventional Enclosed Thermal Current, Ie - Operational Current,  Ui - Insulation Voltage, Ue - Operational Voltage. -

-   For Fluorescent Loads use 56SW110HD or 56SW115HD instead of 56SW110 or 56SW115.

Less Enclosure versions are indicated with the letters LE in the reference.
