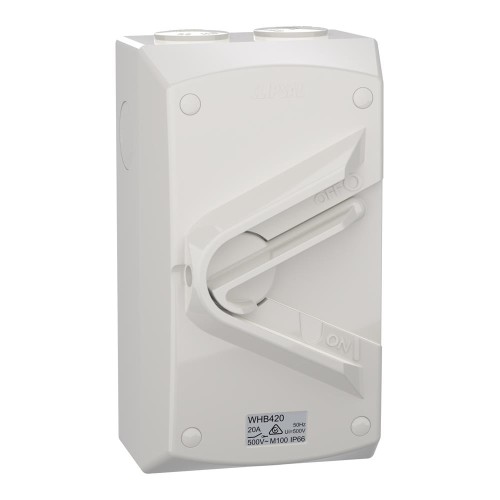

Weathershield, Switch, 1-Gang, 4 Pole, 20A, 500VAC, IP66

The WHA/WHB/WHC Series of Weatherprotected Isolating Switches is a robust range of switches suitable for virtually any external application.

Included in the range are single, double, triple and four pole switches from 10 to 80 Amps.

The base mounted mechanism on WHB and WHC provides for easier termination and more wiring room.

The Impact Resistant base and cover will survive the hardest knocks in almost any installation.

The two sections are sealed with a Co-injection gasket on WHA and WHB products and a one-piece gasket for WHC product.

For security, a 8mm diameter hole is provided for padlocking the lever in the OFF position.

Deep moulded barriers protect the operating lever from physical abuse or accidental switching. Clipsal No 9 Series ‘Identicaps’ will fi t all screw holes for circuit identifi cation.

Products are Authority approved and comply with AS 60529 ‘Degrees of Protection’ and all relevant tests specifi ed to AS/NZS 60947.3 and IEC 60669.1.

All units are approved to AS/NZS3947-3 AC23. Mines and Energy South Australia Approval S/1.

Standard colours are chemically resistant Grey and White.
