Clipsal’s slim DIN mounted, 30mA combination MCB/RCDs are available as single module devices to save valuable switchboard space.

Features and benefits:

• Top and bottom line and load compatible for ease of installation.

• Short circuit breaking capacity of 6kA.

• Rated at 240V, 30mA / 10mA, type A, C-Curve.

• One module width – ideal for retrofit installations where space is limited.

• Two-pole safety feature allows switching of both Active and Neutral contacts.

• Trip free locking device (lockable ‘ON’ or ‘OFF’ position).

• Compatible with Clipsal’s 4LD Lock Dog.

• AS/NZS 61009 compliance.

Applications:

• Ideal for retrofit installations where pole space is a problem.

• Small width allows a greater number of RCBOs to be installed

in one enclosure.

Write a review

Your Name

Your Review

Note: HTML is not translated!

Rating Bad Good

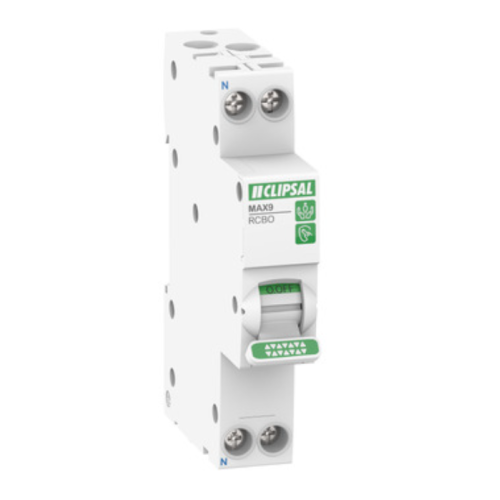

Clipsal MX9R3120 MAX9 RCBO 1PN C 20A 30mA A SLIM
