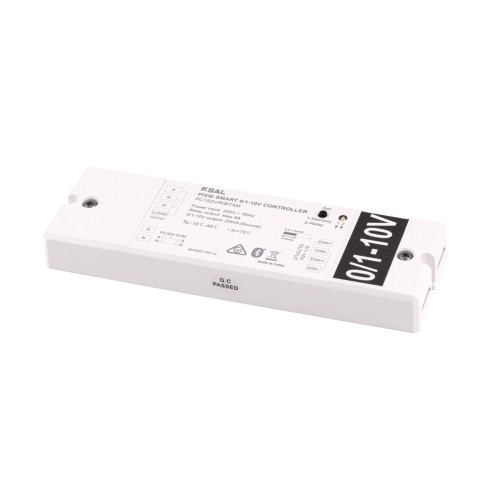

PIXIE SMART LED STRIP CONTROLLER, 1-10V, DIMMABLE RGB

Application

Designed for dimming all types of 0-10v and 1-10v dimmable drivers, with a built in relay for switching loads that do not dim to zero light output.

Design Specifications

• Full PIXIE Master Device G3 functionality - dimming, schedules, groups, scenes

• Broadcast controls to "Switch wire-Group"

• Built in 20mA source for compatible drivers, built in 5Amp relay with no minimum load requirement

• Memory Switch - Return to previous level after power outage - ideal for commercial applications

• Built in PIXIE Mesh Booster circuit

• Built in BP input for connection of momentary press mechs and 3rd party systems to control
