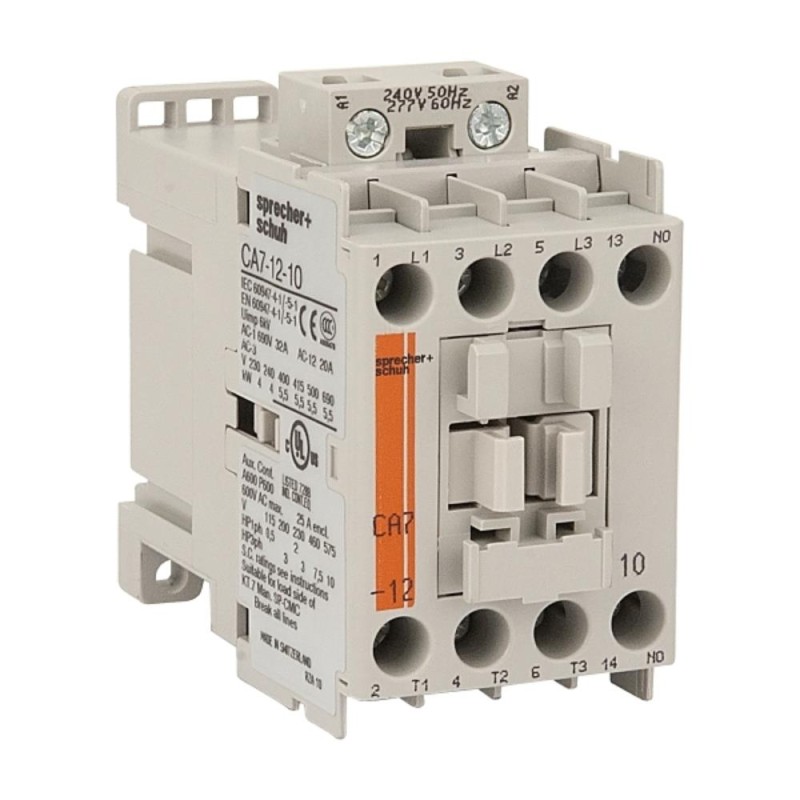

S+S CA7 Contactor 5.5kW 3Pole 240VAC Coil 1NC Contact Auxiliary

S+S CA7 Contactor 5.5kW 3Pole 240VAC Coil 1NC Contact Auxiliary
2-3 Days delivery Order Only
Component Type (ETIM Class)
Power contactor, AC switching
Electrical
Number of normally open contacts as main contact3
Number of normally closed contacts as main contact0
Rated operation current Ie at AC-3, 400 V12 A
Rated operation power at AC-3, 400 V5.5 kW
Rated operation current Ie at AC-1, 400 V32 A
Max. rated operation voltage Ue AC690 V
Voltage type for actuatingAC
Control supply voltage Us at AC 50HZ240 V
Number of auxiliary contacts as normally open contact0
Number of auxiliary contacts as normally closed contact1
Rated operation current Ie at AC-3, 690 V7 A
Rated operation power at AC-3, 690 V5.5 kW
Rated operation power at AC-4, 400 V3 kW
Control supply voltage Us at AC 60HZ277 V
Power consumption, AC coil pickup75 VA
Power consumption, AC coil hold-in9.5 VA
Type of electrical connection of main circuitScrew connection
Rated operation current Ie at AC-4, 400 V6.6 A
Degree of protection (IP)IP20
Mounting methodDIN-rail/screw
Dimensions
Height81 mm
Width45 mm
Depth86.5 mm
Weight0.39 kg
S+S CA7 Contactor 5.5kW 3Pole 240VAC Coil 1NC Contact Auxiliary
S+S CA7 Contactor 5.5kW 3Pole 240VAC Coil 1NC Contact Auxiliary

The Sprecher + Schuh CA7 contactors are the ideal solution for reliable and durable electrical components.

It is a modern and flexible IEC power contactor for DOL starting needs with up to 100A AC3 and wide range selection covering from 4kW up to 63kW (400V).

Electric
Coil voltage 240V AC
Contacts 1NC
Amperage N/A
Stock
Stock Low

Write a review

Note: HTML is not translated!
Bad Good
Based on 0 reviews. - Write a review
$73.43
Ex GST: $66.75
  • Stock: Order Only
  • SKU: NHPCA71201240VAC
  • MPN: CA71201240VAC
NHP NHP
