Details

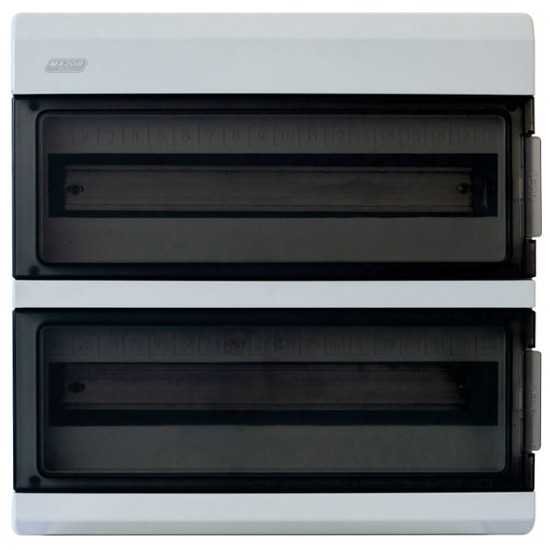

An IP66 electrical distribution board offers superior protection for electrical circuits in harsh environments. Rated IP66, it is completely dust-tight and can withstand powerful water jets from any direction, making it ideal for outdoor and industrial use. Constructed from robust materials with sealed enclosures, the IP66 and IK08 impact resistant shell safeguards against dust, moisture, and impacts. When equipped with circuit breakers, earth leakages, and isolator switches, this distribution board ensures reliable protection against overloads and faults. Suitable for factories, marine settings, and areas prone to extreme weather, the IP66 distribution board ensures durability and safety, maintaining optimal performance even in challenging conditions.
• Approval: CE, RoHS, HF test, IK test, ISO 9001
• Protection grade: IP66
• IK Rating: IK08
• Colour of base: Grey
• The colour of door: Transparent
• Mounting type: Surface
• Material:
• DB box shell: Polycarbonate (PC)
• Earth/Neutral bar: copper
• Fire resistence: 850°C/30s
• Ambient temperature: -5°C to 40°C, 50% humidity permitted under max 40°C
• Storage temperature: -40°C to 75°C
• Limited Warranty: 5 Years
- Stock: In Stock
- SKU: MAJVBW36SA
- MPN: VBW36S
