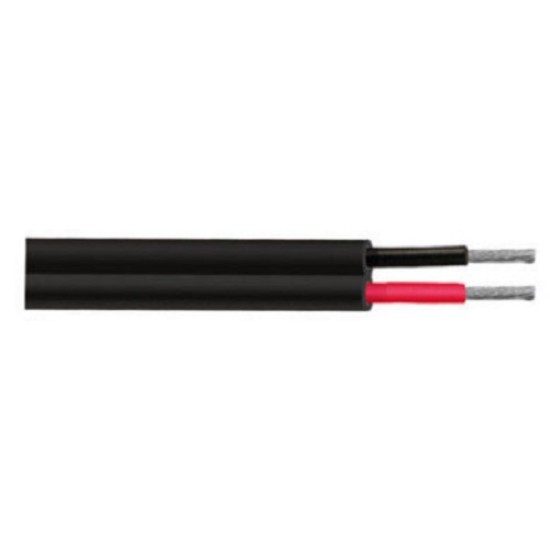

Pv1-f Twin 4.0mm2 Dc Solar Cable

Pv1-f Twin 4.0mm² Dc Solar Cable

Conductor: Annealed Tinned Flexible Copper Class 5 of IEC 60228

Insulation: Electron Beam cross-linked polyolefin (XLPO) insulation as per Annexure B Table B.1 of IEC 62930

Sheath: XLPO as per IEC 62930 - Black with Red Trace

Nominal DC Voltage: 1.5kV between conductors as well as between conductors and earth.

Max. Conductor Temp under normal conditions: 120°C

Core Colours: Red, Black

Bending Radius: 4 times the overall diameter of the cable.

Standards: AS/NZS 5033:2021, IEC62930, Flame retardant as per IEC60332-1-2, Ozone Resistant as per IEC 60811-403, Weather / UV Resistant as per IEC 62930 Annex E. AS/NZS 5139:2019 and clause 5.3.1.4.2 from AS/NZS 5139:2019. Full compliance with the Electrical Regulatory Authorities Council (ERAC).

Notes: AS/NZS 5033:2021 Clause 3.1 allows a maximum calculated PV voltage of 1000V D.C. for domestic installations, and 1500V D.C for other installations.
