Efficiencies

Total System Efficiency125 lm/W
The performance of each component of a luminaire is demonstrated through its efficiencies, which together determine the total system efficiency of the product. The output of the LED chip is first multiplied by the optical and thermal efficiencies to calculate the Luminaire efficiency. However, this calculation does not consider the driver efficiency. To determine the overall efficiency of the system, the Luminaire efficiency must be multiplied by the driver efficiency, which accounts for all losses in the system.

Mechanical

Body MaterialPowder Coated Steel
Diffuser MaterialPMMA
Fitting ColourWhite
Installation TypeSurface mount
IP RatingIP20

Electrical

Electrical RatingClass I
Input Frequency50 Hz
Input voltage230Vac
In Australia the Input voltage is defined as 230Vac -6%/+10%. This effectively means that the voltage range of these products are 216Vac - 253Vac or 240V +6%
Maximum Wattage20 W
Power Factor0.95
Standby Power0.3 W
Standby power for non-maintained/switched maintained emergency devices is measured when the light is off and the charger is in standby mode. For maintained emergency devices, standby power is measured when the light is on and the charger is in standby mode. Typically, charging occurs for the first 16 hours after the device is powered or after a battery discharge.
Switch TypeInbuilt Mains Rated DALI Switch
A Terminal input has been provided to allow the wiring of a Main rated switch input. This input can be programmed to switch any controlled area when using a DALI-2 compliant control system. This input supports IEC62386-301 (momentary or rocker switches), IEC62386-302 (on /off switches) and IEC62386-303 (mains rated sensor inputs).
System Max Wattage20 W
Working Temp Range0 to 40 °C

Lamp

Macadam Steps (SDCM)3-step MacAdam Ellipse
CCT ConfigurationSingle
Colour Rendering Index (CRI)>84
Lamp/LED Current650 mA
Lamp/LED voltage24 V

LED Lifetime

LED Lifetime>102000 hrs
This is the Reported LED Lifetime in Hours based on TM-21. Ektor does not list the projected or calculated LED lifetime, which is normally longer as TM-21 Addendum B explicitly states "The Calculated and Projected Lp(Dk) are not to be reported". This Lifetime refers to the life of a single LED however the system life is longer since the probability and binomial distribution of all LEDs in the system means that the average led is performing above the specification and compensates for the LEDs falling below.
LED Lifetime Ratings (Failure rate & lumen depreciation)
Ambient Temp (°C)25 °C40 °C
L90B1055000 hrs55000 hrs
This rating defines the performance of the led within its lifetime. L relates to lumen depreciation, where the proceeding number gives the resultant lumen output at the end of it reported lifetime. L70, would mean 30% lumen depreciation which means 70% of its initial output and is tested accordingly to TM-21. The B part refers to failures, which can be define as the percentage of LEDs which fall below the L value in the projected lifetime. A value of B10 refers to 10% failure and a value of B50 refers to 50% failure. After the defined lifetime, the system will reach the defined lumen depreciation and the average led failures is defined by the B rating. The B rating is defined in and tested to IEC62717.
TM-21 Test Hours17000 hrs

Colour temperature

CCT4000 K
Luminaire Lumens2500 lm
All photometric data has a tolerance of ±10%. Luminaire lumens refers to the exit lumens or delivered lumens from the luminaire.

Driver

DimmableYes
Driver IncludedYes
Integrated DriverNo
Driver ModeConstant Current
Driver TypeDALI DT6 LED Driver
DALI DT6 ~ Includes DALI-2 Driver with full support for DT6 allowing flicker free dimming with compliant DALI-2 Application controllers.
Power MonitoringDALI Device type 51 power monitoring
Inbuilt DALI-2 support for Device type 51 - Power monitoring for use with DALI-2 compliant control systems which allows the reporting of the products total power consumption for power aggregation and measurements.
Wiring TypeRe-wireable terminal block (6 pin)
PSTLM0.08
Short Term Light Modulation (PstLM): The requirement is that PstLM should be less than or equal to 1.0. This metric measures the short-term flicker severity and ensures that flicker is not perceptible or is at a level that does not cause discomfort or health issues.
SVM0.018
Stroboscopic Visibility Measure (SVM): The requirement for SVM is that it should be less than or equal to 0.4. The SVM metric assesses the visibility of the stroboscopic effect, which can make moving objects appear to be stationary or moving in discrete steps, thus ensuring that this effect is minimized in lighting environments to prevent visual discomfort and safety hazards.

Emergency (EM suffix)

Replacement Battery Code01302
Emergency ClassificationC0:D40, C90:D25
Emergency ControlDALI Monitored (DT1)
DALI Monitored ~ Supports Emergency test and monitoring over DALI (IEC62386) with full compliance to IEC62386-202.
Emergency Duration90 mins
Emergency Lumen Output350 lm
Emergency ModeMaintained
Emergency Output Power1900 mW

Compliance

Product Design Life12 years
The product design life relates to the total product life which includes LEDs, drivers and the enclosure. This is different to the LED lifetime which only refers to the economical lifetime of the LEDs at which time the lumen output has dropped below the L Value. The product design life is calculated at the maximum ambient or working temperature of the product and takes into account the Daily Use.
Standards
  • AS/NZS 60598.1
  • AS 60598.2.22
  • AS/NZS 61347.1
  • AS/NZS 61347.2.13
  • AS CISPR 15
  • AS/NZS 2293.3
  • IEC 62386-102
  • IEC 62386-103

Warranty

Commercial Use Warranty
  • 5Y return to base on General lighting components
  • 8Y return to base on Emergency lighting components
  • First 2Y includes an exclusive onsite warranty
VIP Warranty2 Onsite, 3 RTB (Total 5 Years)
VIP warranty is available to registered users and is subjected to additional terms and conditions. Register as a VIP today. Our standard warranty is return-to-base. Onsite warranty is only available to users who are registered, for sites located in the defined areas/regions and for purchases that have been registered.
Warranty Operating Hours30000 hrs
This product is provided with a warranty up until the stated warranty period or until the stated warranty operating hours has been reached (whichever occurs first).
EV-UMBRA-PRO-DIFF-600-EM~UMBRA PRO 600mm Diffused LED Emergency batten

EV-UMBRA-PRO-DIFF-600-EM~UMBRA PRO 600mm Diffused LED Emergency batten

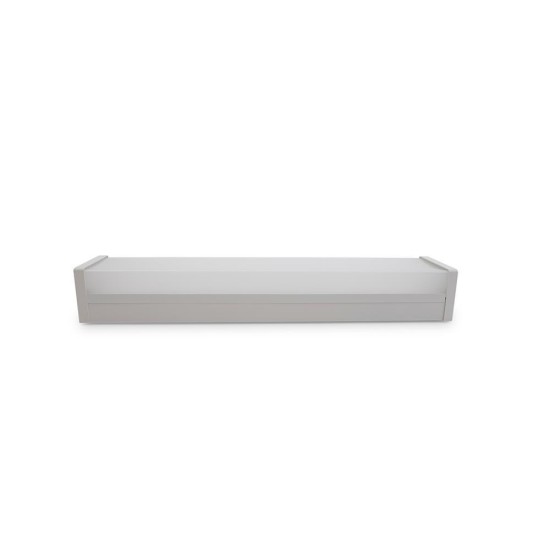

Professional Diffused Batten, DALI

  • Smartest and most feature inclusive batten on the market. Provides long life and unrivaled control.
  • Flicker-free dimming throughout the dimming range which allows light level adjustment to gain maximum power savings.
  • LED lifetime >102,000 hours (L70), >102,000 hours (L80) and 55,000 hours (L90).
  • 12 years design life at max. ambient
  • Full support for DALI and DALI-2 (IEC 62386) DT6 (LED).
  • Power monitoring (DT51) allows control systems to montior and report active power and total power consumption.
  • Built-in DALI-2 switch can be used for standalone control or unlimited control with DALI-2 compliants control systems.

Selected Models

  • DALI (IEC62386)
  • Emergency models fully compliant (AS/NZS 2293.3) and supports DALI DT1 (EM).
  • Soft-start battery charger to reduce building load, allowing the building to stabilize before adding additional load.
  • High quality lithium battery (LiFePO4) and smart charger to ensure long battery service life.
  • Microwave sensor suitable for DALI-2 (IEC 62386-303) allows unlimited control on DALI-2 compliant control systems.
  • Corridor mode support in standalone mode to intelligently save power by turning off when there is no occupancy.
  • Corridor mode function in standalone operation
